In this assignment, we are going to develop a simple single-page iNotes application using the MERN stack (MongoDB, Express.JS, ReactJS, and Node.js). The main workflow of the iNotes application is as follows.

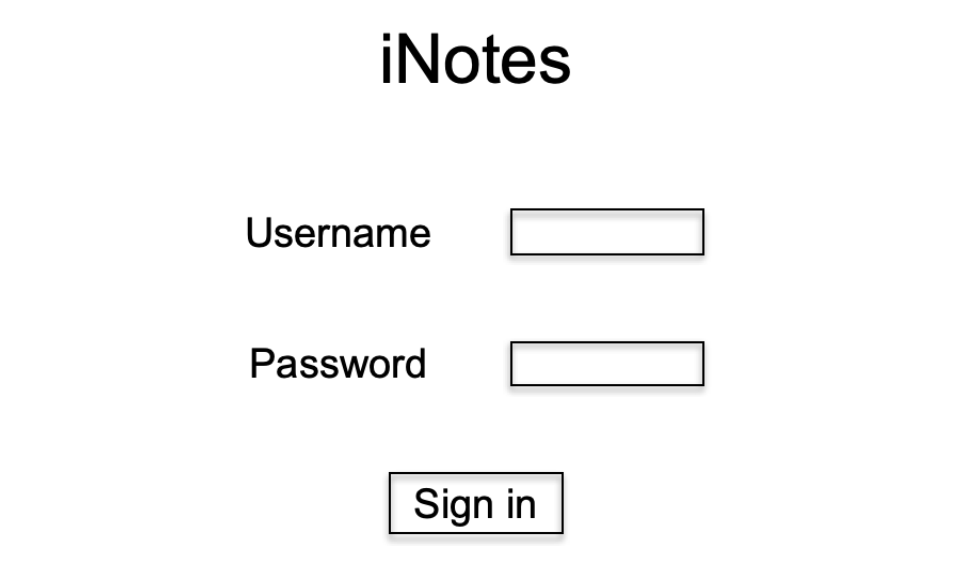

Upon loading, the sketch of the page is shown in Fig. 1:
TEST1
After a user (e.g., Andy) has logged in, the sketch of the page is in Fig. 2.
- ✔️The user’s icon,
- ✔️user name and a
- ✔️logout button are displayed on the top.
- ✔️A list of this user’s notes are shown on the left panel (node
title
only) together with a- ✔️search bar, and the
- ✔️right panel is empty except an icon indicating the creation of a new note
- (i.e., the
New note icon
).
- (i.e., the
- ✔️The node titles in the left panel should be listed in reverse chronological order of the last saved time of the notes.
- ✔️The total number of notes should be given in the ( ) on the top of the list.
✔️❌📖📄
TEST2
After one clicks on the New note icon
(on any page view where it is shown),
- ✔️A new node creation panel shows in the right panel (Fig. 3).
- ✔️There is a node
title
input field and a notecontent
input field, into which the user can enter texts. - ✔️There is a
Cancel
button, clicking which a confirmation boxAre you sure to quit editing the note?
will be popped up:- ✔️if the user confirms quitting, the page view goes back to the one shown in Fig. 2;
- ✔️otherwise, the current page view remains.
- ✔️There is a
Save

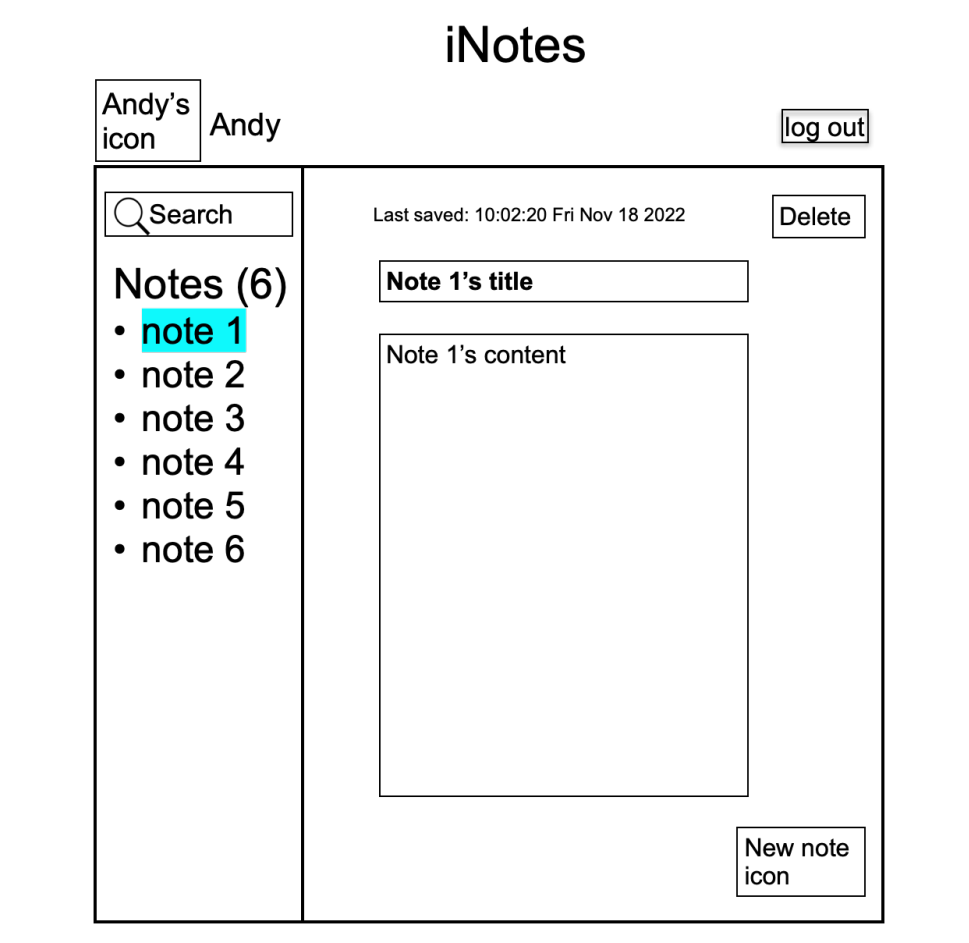

button, clicking which the newly created note is shown on the right panel,- ✔️with the
Last saved
time and aDelete
button displayed on top of the note, as shown in Fig. 4; - ✔️The note
title
should be listed in the left panel, as the first in the list (as it is the latest), - ✔️The note
title
should be highlighted in a different color than the rest of the note titles in the list (since this note’scontent
is shown in the right panel), - ✔️and the total number of notes in ( ) on top of the list should be incremented.
- ✔️with the
Fig. 3 Fig. 4
TEST3
At any time, when one clicks on one note title
in the left panel, the note’s content
should be displayed in the right panel
- ✔️as shown in Fig. 5 (which is in fact the same page view as Fig. 4),
- and the node
title
in the left panel should be highlighted. - On the page view (i.e., Fig. 4 or Fig. 5’s page view), if one clicks into the note
title
input field or notecontent
input field,- ✔️the page view changes to the one in Fig. 6, with a
Cancel
button and aSave
button (indicating a note editing mode).
- ✔️the page view changes to the one in Fig. 6, with a
- ✔️When
Cancel
is clicked, a confirmation boxAre you sure to quit editing the note?
will be popped up:- ✔️if the user confirms quitting, the page goes back to the previous note view (Fig. 4 or Fig. 5);
- otherwise, the current page view remains.
- ✔️When
Save
is clicked, a page view as in Fig. 4 or Fig. 5 is shown, except that theLast saved
time on the top of the right panel should be the updated latest note saved time.
Fig. 5 Fig. 6
TEST4
One can input a search string into the search bar at the top of the left panel and press Enter
on the keyboard.
- ✔️Then only the notes whose
title
orcontent
contains the search string will be listed in the left panel,- ✔️ordered in reserve chronological order of their last saved time, and the number in ( ) shows the number of matched notes.
- On a page view as in Fig. 3, 4, 5 or 6,
- ✔️the search does not influence the display in the right panel,
- and if the note whose details are displayed in the right panel matches the search,
- its
title
in the searched list in the left panel should be highlighted.
- its
- and if the note whose details are displayed in the right panel matches the search,
- ✔️the search does not influence the display in the right panel,
- For a search on a page view as in Fig. 6,
- ✔️last saved
title
andcontent
of the note that is being edited are used for matching the search; - ✔️when the note is saved, if its
title
andcontent
do not match the search, it will not be displayed in the searched list in the left panel.
- ✔️last saved
TEST5
On a page view as in Fig. 4 or Fig. 5, after one clicks the Delete
button,
- ✔️a confirmation box pops up showing
Confirm to delete this note?
- ✔️If the user confirms the deletion, the note information will be removed from both the left and right panels.
- ✔️In the left panel, the total note number will be decremented;
- ✔️the right panel will show no note information as in Fig. 2.
- ✔️If the user cancels the deletion, the page view remains unchanged.
- ✔️If the user confirms the deletion, the note information will be removed from both the left and right panels.
TEST6
When one clicks the log out
button on a page view as in Fig. 2, 4 or 5,
- ✔️the page view directly goes back to Fig. 1.
- When one clicks the
log out
button on a page view as in Fig. 3 or 6,- ✔️an alert box
Are you sure to quit editing the note and log out?
will be popped up:- ✔️if the user confirms quitting, the page view goes back to Fig.1;
- ✔️ otherwise, the current page view remains.
- ✔️an alert box
We are going to achieve this web application by implementing code in a backend Express app and a frontend React app. • Express app: app.js ./routes/notes.js • React app: ./src/App.js ./src/index.js ./src/App.css
Task 1. Backend Web Service
We implement the backend web service logic using Express.js. The web service is accessed at http://localhost:3001/xx
.
Preparations
- Following steps in setup_nodejs_runtime_and_examples_1.pdf, create an Express project named NoteService.
- Following steps in AJAX_JSON_MongoDB_setup_and_examples.pdf, run MongoDB server, and create a database
assignment2
in the database server. - Insert a few user records to a userList collection in the database in the format as follows.
We will assume that user names are all different in this application. db.userList.insert({'name': 'Andy', 'password': '123456', 'icon': 'icons/andy.jpg'})
. Create a folder icons
under the public folder in your Express project directory (NoteService). Copy a few icon images to the icons folder. For implementation simplicity,
we do not store icon images in MongoDB.
Instead, we store them in the harddisk under the NoteService/public/icons/ folder, and store the path of an icon in the userList collection only, using which we can identify the icon image in the icons folder.
Insert a number of records to a noteList
collection in the database in the format as follows, each corresponding to one note in the app. Here userId should be the value of _id
of the record in the userList collection, corresponding to the user who added the note.
db.noteList.insert(
{ 'userId': 'xxx',
'lastsavedtime': '20:12:10 Tue Nov 15 2022',
'title': 'assigment2',
'content': 'an iNotes app based on react'
})
Implement backend web service logic (NoteService/app.js, NoteService/routes/notes.js)
Marking scheme
app.js (10 marks)
In app.js, load the router module implemented in ./routes/notes.js. Then add the middleware to specify that all requests for http://localhost:3001/ should be handled by this router.
Add necessary code for loading the MongoDB database you have created, creating an instance of the database, and passing the database instance for usage of all middlewares.
Also load any other modules and add other middlewares which you may need to implement this application.
We will let the server run on the port 3001 and launch the Express app using command
node app.js
.
./routes/notes.js (22 marks)
In notes.js, implement the router module with middlewares to handle the following endpoints:
- HTTP
POST
requests for http://localhost:3001/signin.
- The middleware should parse the body of the HTTP
POST
request and extract the username and password carried in request body. - Then it checks whether the username and password match any record in the userList collection in the database.
- If no, send
Login failure
in the body of the response message. - If yes, create a session variable
userId
and store this user’s_id
in the session variable.
- If no, send
- Retrieve name and icon of the current user (according to the value of the
userId
session variable),_id
,lastsavedtime
andtitle
of all notes of the current user from the respective collections in the MongoDB database. - Send all retrieved information as a JSON string to the client if database operations are successful, and the error if failure.
- You should decide the format of the JSON string and parse it accordingly in the front-end code to be implemented in Task 2.
- HTTP
GET
requests for http://localhost:3001/logout.
- The middleware should clear the
userId
session variable and send an empty string back to the user.
- HTTP
GET
requests for http://localhost:3001/getnote?noteid=xx.
- Retrieve
_id
,lastsavedtime
,title
andcontent
of the note from thenoteList
collection based on the value ofnodeid
carried in the URL. Send retrieved information as a JSON string in the body of the response message if database operations are successful, and the error if failure. - You should decide the format of the JSON string to be included in the response body.
- HTTP
POST
requests for http://localhost:3001/addnote.
- The middleware should parse the body of the HTTP
POST
request and extract the notetitle
andcontent
carried in the request body. - Then it saves
- the new note into the noteList collection together with the
_id
of the current user (based on the value ofuserId
session variable) - and the current time on the server as the
lastsavedtime
. - if database operations are successful.
- Return the
lastsavedtime
and_id
of the note document in the nodeList collection to the client in JSON - and the error if failure
- Return the
- the new note into the noteList collection together with the
- HTTP
PUT
requests for http://localhost:3001/savenote/:noteid
- The middleware should update the
lastsavedtime
,title
andcontent
of the note in the noteList collection based on- the
nodeid
carried in the URL, - the current time on the server and
- the data contained in the body of the request message.
- if success Return the
lastsavedtime
to the client .- and the error if failure
- the
- HTTP
GET
requests for http://localhost:3001/searchnotes?searchstr=xx.
- The middleware should find in the noteList collection all notes of the current user (based on the value of
userId
session variable) whosetitle
orcontent
contains the searchstr carried in the URL. - Send
_id
,lastsavedtime
andtitle
of those notes in JSON to the client if database operations are successful, and - error if failure.
- HTTP
DELETE
requests for http://localhost:3001/deletenote/:noteid
- The middleware, should delete the note from the
noteList
collection according to thenoteid
carried in the URL. - Return an empty string to the client if success and
- the error if failure
Task 2
Front-end React App
Implement the front-end as a React application. The application is accessed at http://localhost:3000/.
Preparations
Following steps in React_I_examples.pdf, create a React app named noteapp and install the jQuery module in the React app.
Implement the React app (noteapp/src/index.js
, noteapp/src/App.js
, noteapp/src/App.css
)
index.js (3 marks)
Modify the generated index.js
in the ./src
folder of your react app directory,
which should render the component you create in App.js
in the root
division in the default index.html
, and remove any unnecessary code.
App.js (50 marks)
App.js
should import the jQuery module and link to the style sheet App.css
.
Design and implement the component structure in App.js
, such that the front-end page
views and functionalities as illustrated in Figures 1-6 can be achieved.
Hints:
- You can use conditional rendering to decide if the page view in Fig. 1 or Fig. 2 should be rendered. Suppose the root component you are creating in App.js is iNoteApp. In iNoteApp, you may use a state variable to indicate if the user has logged in or not, and then render the component presenting the respective page view accordingly.
Initialize the state variable to indicate that no user has logged in, and update it when a user has successfully logged in and logged out, respectively.
-
In the component implementing the page view as in Fig. 1, add an event handler for the onClick event on the
Sign in
button. When handling the event, send an HTTPPOST
request for http://localhost:3001/signin (refer to this website for AJAX cross-origin with cookies: http://promincproductions.com/blog/cross-domain-ajax-request-cookies-cors/). -
According to the response received from the backend service, remain on the page view and display the
Login failure
message at the top of the page, or render the page view as in Fig. 2. You can limit the number of characters in each notetitle
in the left panel to a small fixed number n, i.e., only the first n characters of the notetitle
is shown and the rest shown as…
. -
When handling the
onClick
event on thelog out
button in a page view as in Figures 2-6, send an HTTPGET
request for http://localhost:3001/logout and handle the response accordingly. -
When handling the onClick event on a node
title
in the left panel of a page view as in Figures 2-6, send an HTTPGET
request for http://localhost:3001/getnote?nodeid=xx, where xx should be the_id
of the note that you store with the notetitle
in the list. Then render a page view as in Fig. 5. -
When handling the onClick event on the
Save
button in a page view as in Fig. 3, send an HTTPPOST
request for http://localhost:3001/addnote carrying the new node’stitle
andcontent
in the body of the request message, and handle the response accordingly. -
When handling the onClick event on the
Save
button in a page view as in Fig. 6, send an HTTPPUT
request for http://localhost:3001/updatenote/xx where xx should be the_id
of the note being updated, and handle the response accordingly. -
When handling the onClick event on the
Delete
button in a page view as in Fig. 4 or Fig. 5, send an HTTPDELETE
request for http://localhost:3001/deletenote/xxx (where xxx is_id
of the note to be deleted). If success response is received, update the page view accordingly. -
When handling the onKeyUp event (event.key == "Enter") on the search input box in a page view as in Figures 2-6, send an HTTP
GET
request for http://localhost:3001/searchnotes?searchstr=xxx (where xx is the input search string). When success response is received, update the page view accordingly.
App.css (10 marks)
Style your page views nicely using CSS rules in App.css.
Other marking criteria: (5 marks)
- Good programming style (avoid redundant code, easy to understand and maintain).
- You are encouraged to provide a readme.txt file to let us know more about your programs.
Submission:
You should zip the following files (in the indicated directory structure) into a yourstudentID-a2.zip file
NoteService/app.js
NoteService /routes/notes.js
noteapp/src/App.js
noteapp/src/index.js
noteapp/src/App.css
